The machine weight：73±1kg Walking mode：Hand push Grinding position adjustment mode：Hand wheel spiral adjustment Engine power：5kw/3800rpm Carburetor oil supply mode：Electric injection

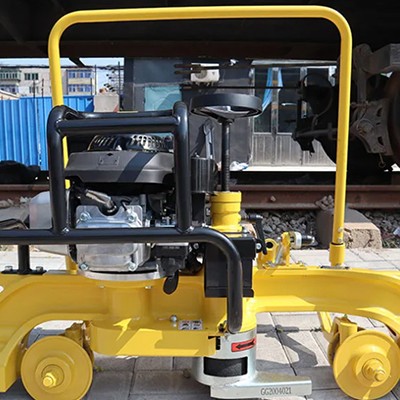

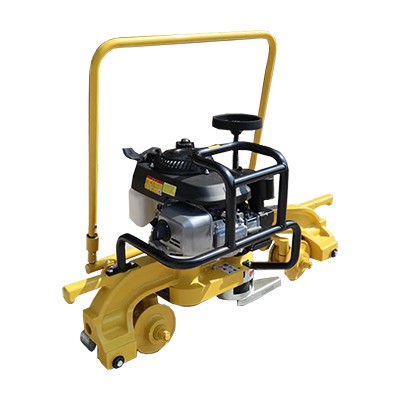

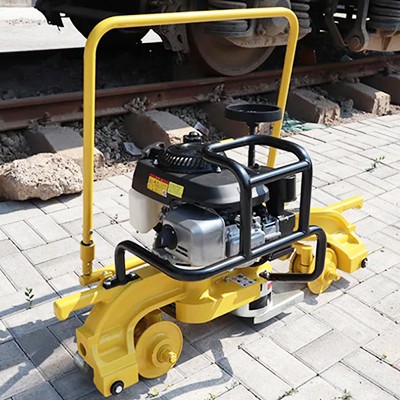

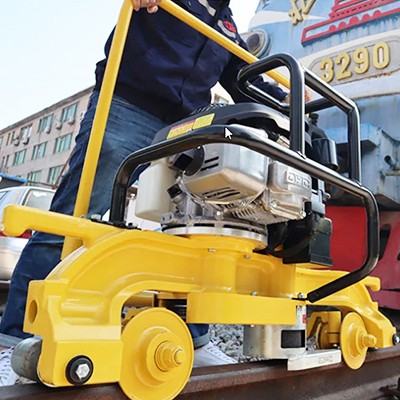

The machine is mainly suitable for grinding the burrs caused by rail thermo seamless welding or strengthening welding and rail wear. The body adopts high-strength aluminum alloy frame and is equipped with biased anti-skid guide wheel, which can polish the two sides and top surface of the rail head. It is a special equipment for railway works to polish the rail head.
· The use of tilting engine, working can tilt 90 degrees continuous grinding for more than 2 hours.
· Copying grinding, grinding precision, high efficiency,polishing surface clean.
· Automatic locking structure, locking the grinding position an be effectively maintained.
· Mechanical feed, labor saving and convenient.
| The machine weight | 73±1kg |
| Walking mode | Hand push |
| Grinding position adjustment mode | Hand wheel spiral adjustment |
| Engine power | 5kw/3800rpm |
| Carburetor oil supply mode | Electric injection |
| Grinding wheel specifications | 127*70-4*M8 |
| Grinding wheel feed stroke | 60mm |
| Engine model | 1P73F |
| Copy wheel base | 1005±4mm |
| The whole machine fuel consumption rate | ≤1.5L/h |
| Engine displacement | 209ml |
| Fuel tank capacity | 2.0L |
| Turning 90° continuous polishing time | ≥2h |
| Noise value | ≤100dB |
| Insulation between the body and rail | >500MΩ |
| Is there a side grinding auxiliary support | Yes |
