Internal combustion engine：Internal combustion engine Model：GX200 Rev.：≥3600r/min Power：4.8kW Grinding wheel specification：φ125×65×M20

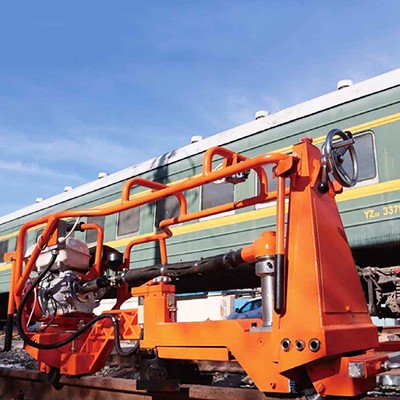

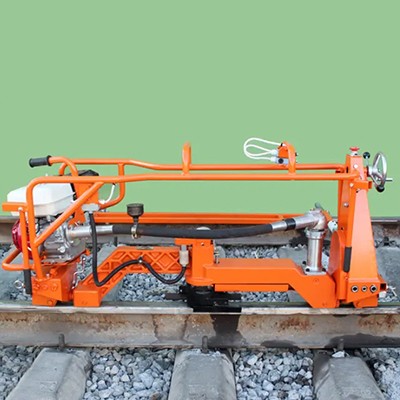

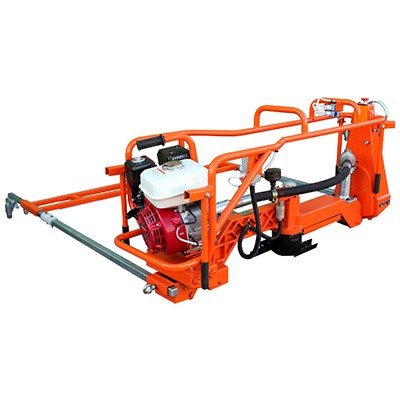

It's suitable for grinding various rails (43kg/m-75kg/m) to deal with weld seam, unleveled joint, rail side thick edge, welded-repaired rail surface,etc.It possesses features of high operation efficiency, good grinding quality, simple manipulation, convenient on-off track. It's an indispensable equipment employed in railway overhaul, maintenance and first-aid repair operation.
| Internal combustion engine | Internal combustion engine |
| Model | GX200 |
| Rev. | ≥3600r/min |
| Power | 4.8kW |
| Grinding wheel specification | φ125×65×M20 |
| Grinding wheel linear speed | 35m/s |
| Main shaft rev. | 4500r/min |
| Grinding head inclining angle | 90° |
| Grinding head stroke | 45 mm |
| Copying wheel base | 1000mm |
| Machine weight | 90kg |
| Overall size | 1500×450×750mm |
