Motor power：1.0kW Rated voltage：220V No load speed：2400r/min The whole machine quality：15.5kg Overall size：600mm×260mm×430mm

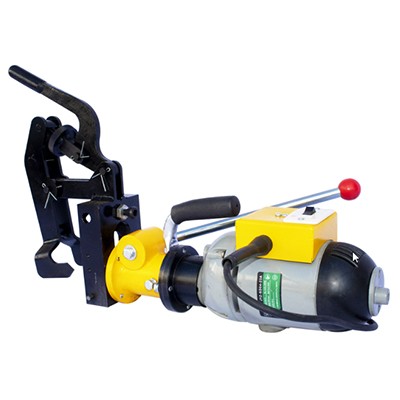

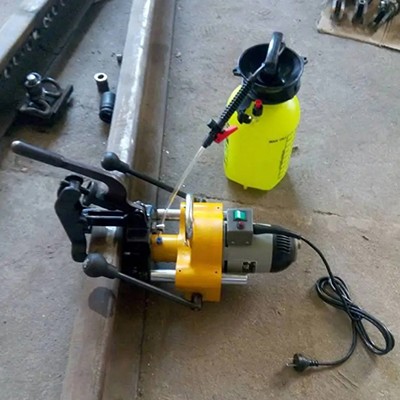

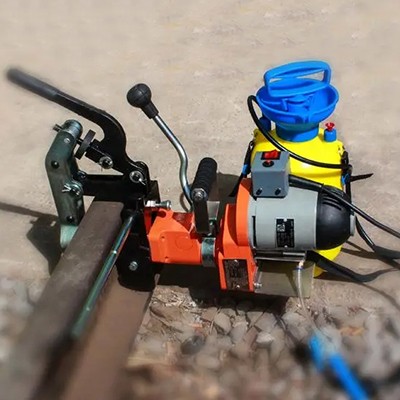

ZG-31 electric rail driling machine is suitable for all kinds of rail drilling operations below 75kg/m. The overall structure is compact, the clamp rail device has self-4ocking function,accurate positioning and high drilling precision. N-tail shank hollow drill or special N-tail shank @9.8-13.5 twist drill,drilling with automatic water supply function, is a necessary tool for maintenance, emergency repair and overhaul operations of the works department.
| Motor power | 1.0kW |
| Rated voltage | 220V |
| No load speed | 2400r/min |
| Drilling diameter | ∅9.8mm ~∅36mm |
| Drilling time | ≤40s |
| The whole machine quality | 15.5kg |
| Overall size | 600mm×260mm×430mm |
